Gen2 (Rudra-SPX)
Rudra-SPX is based on Intel’s Eagle stream Platform. It is designed with Intel’s fourth generation Xeon Scalable Processor (SP) Sapphire Rapids (SPR) with Intel Chipset Emmitsburg. It supports next-gen industry-standard technologies such as PCIe 5.0, HBM & DDR5 memory speeds of up to 5600MT. It is compatible with Open Compute Platform (OCP) 48V DC for Cloud/Data center and HPC market. For cooling it has option of both Liquid (better energy efficiency) and Air cooling. The server is designed with interfaces required for HPC system and in small form factor.
Main features of Rudra-SPX
- Fifth/Fourth Generation Xeon Emerald Rapids/ Sapphire Rapids Server Processor with 56 cores
- Dual Sockets with TDP support up to 300W per CPU.
- Memory: DDR5, RDIMM 4800 MT/s 1-SPC, 8 Channels per socket supporting up to 2 TB/socket.
- Other Interfaces supported:
- One OCP NIC 3.0 cards
- Four PCIe Gen5.0 (32GT/s) x16 ports,
- Three UPI 2.0 links support per CPU (12.8 GT/s, 14.4 GT/s, 16 GT/s)
- Two (stacked) M.2 NVMe
- One x8 PCIe 3.0 Ethernet card
This server is compliant with EMI/EMC and safety certifications such as CE, FCC, BIS and UL.
Its development and manufacturing has been instrumental in capability building, boost to manufacturing industry, Partner development in India.
Versatile design of this server is allowing possibility of many variants
System Management Firmware and BIOS
System Management Firmware based on Intel OpenBMC
Main Features:
- ACPI power management.
- Out-of-band hardware health monitoring.
- Event logging
- Power and thermal management.
- iKVM / virtual media support.
- Intel PFR and seamless update with cryptographically signed firmware.
Different product SKUs available are

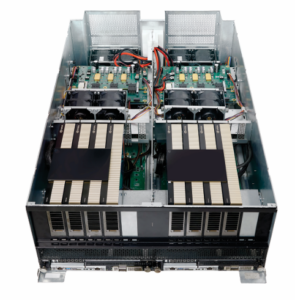

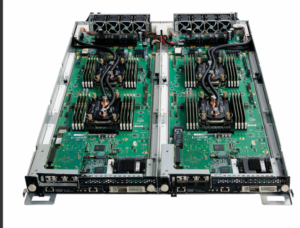

- 1OU servers (two servers in one chassis) with centralized Power supply
- 5OU servers (two servers in one chassis) with centralized Power supply
This server is designed to support both air-cooling and liquid cooling server configurations
